Expansteel specializes in functional metallized film processing, offering a complete product range from standard metallized films to ultra-high barrier grades, with non-woven lamination as our core capability, delivering premium blackout composite materials worldwide.

Request a Quote View Products
Scroll

Why Choose Expansteel

Metallized Film Processing

Professional vacuum metallized PET film processing capabilities

Diversified Product Portfolio

From standard to ultra-high barrier — flexible product lines for every need

Global Standards

Compliant with ASTM / GB / FDA / EU standards

Custom Solutions

Thickness, width, and length fully customizable

Our Products

Metallized Film Products

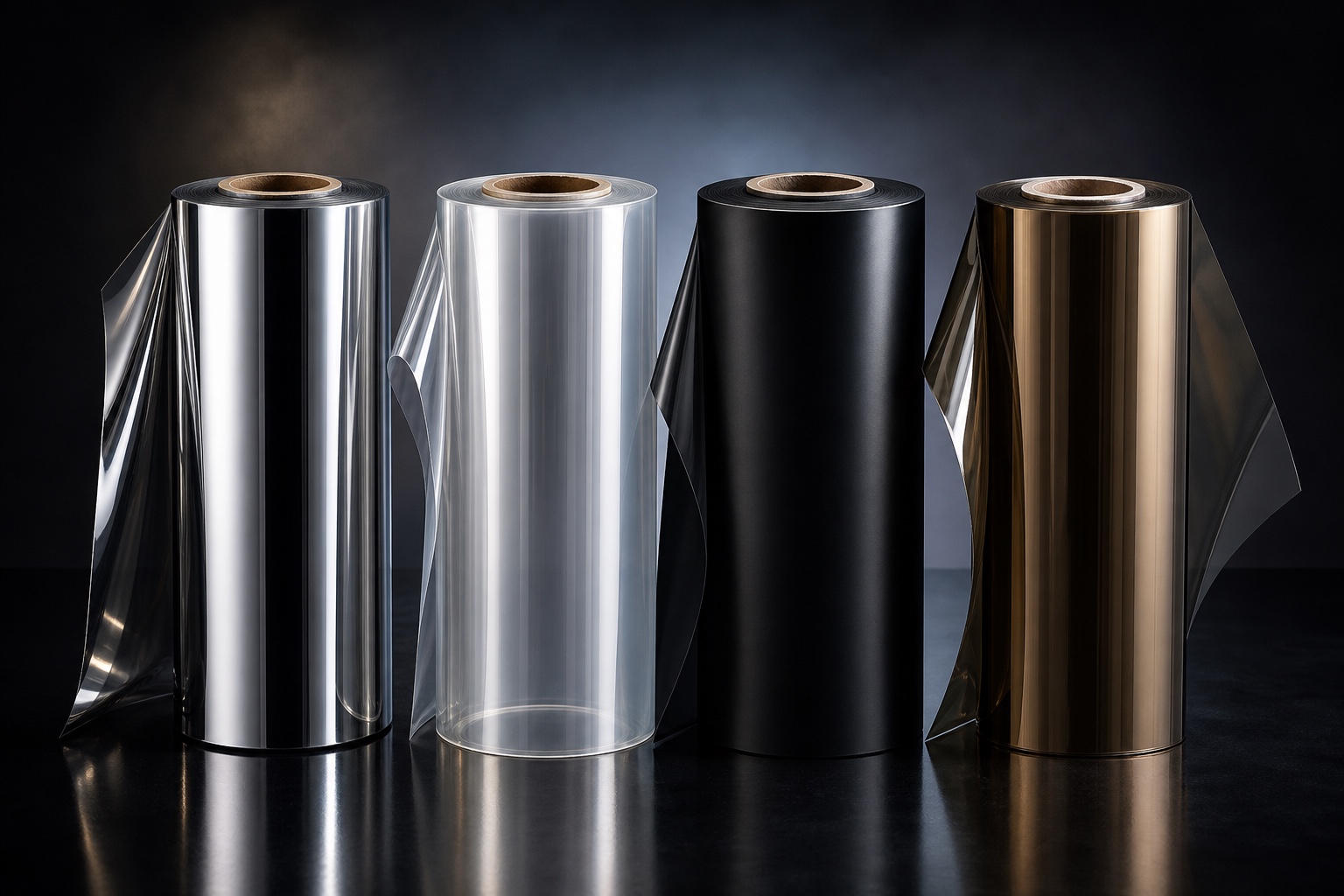

Expansteel offers five series of vacuum metallized PET films, led by our flagship ES-VM Plus blackout grade, meeting diverse blackout, barrier, and lamination requirements.

Standard

ES-VM

Standard Vacuum Metallized PET Film

Mirror-reflective metallized PET with excellent aroma retention and barrier properties — the most versatile base film in our lineup.

  • Mirror-reflective surface
  • Good aroma & moisture barrier
  • Strong aluminum adhesion
  • Compatible with lamination
PackagingAgricultureDecorationInsulation
ItemUnitStandardTypical
Thicknessμm1212
Al Thickness (O.D.)—≥ 2.02.0
Al AdhesionN/15mm—1.5
Surface Tension (Al)mN/m≥ 4854
WVTRg/m²·24h—Standard
OTRcc/m²·24h—Standard

Available: 6μm–100μm thickness. Width and length customizable.

★ Flagship

ES-VM Plus

Blackout-Grade Metallized PET Film

Total blackout × superior weather resistance — purpose-built for the curtain industry.

  • Total blackout — light transmittance ≈ 0
  • UV weather resistance tested & passed
  • High thermal reflectivity
  • Optimized for non-woven lamination
Blackout CurtainsGreenhouseIndustrialOutdoor
ItemUnitStandardTypical
Thicknessμm1212
Al Thickness (O.D.)—≥ 2.02.0
Al AdhesionN/15mm—1.5
Surface Tension (Al)mN/m≥ 4854
Light Transmittance%≈ 0≈ 0
Weather Resistance (UV)—PassPass

Available: 6μm–100μm thickness. Width and length customizable.
Recommended: ES-VM Plus + Non-woven lamination → Blackout curtain composite material

High Adhesion

ES-GF

High Adhesion Metallized PET Film

Al adhesion ≥ 2.0 N/15mm, FDA / EU / REACH / RoHS compliant — ideal for premium composite packaging.

  • Al adhesion ≥ 2.0 (GF01: ≥ 3.0) N/15mm
  • Can replace aluminum foil structures
  • FDA / EU / REACH / RoHS compliant
  • Increased Al thickness without peeling
Food PackagingDairyCoffeeSnacks
ItemUnitES-GFES-GF01
Thicknessμm1212
Al AdhesionN/15mm≥ 2.2≥ 3.0
Surface Tension (Al)mN/m≥ 48≥ 48
WVTRg/m²·24h≤ 1.5≤ 0.8
OTRcc/m²·24h≤ 1.5≤ 0.8
Ultra Barrier

ES-H

Ultra-High Barrier Metallized PET Film

OTR as low as ≤ 0.1 cc/m²·24h — industry-leading barrier for maximum shelf life extension.

  • Three grades: H / H01 / H03
  • Exceptional moisture & oxygen barrier
  • Superior UV light blocking
  • OTR down to ≤ 0.1 (H03 grade)
Tea & CoffeePharmaElectronicsSpices
ItemUnitES-HES-H01ES-H03
WVTRg/m²·24h≤ 1≤ 0.8≤ 0.3
OTRcc/m²·24h≤ 1≤ 0.5≤ 0.1
Al AdhesionN/15mm≥ 1.5≥ 2.0≥ 2.5
Chemical Coated

ES-C

Chemical Coated Metallized PET Film

Al adhesion ≥ 4.0 N/15mm, withstands 121°C retort — strongest adhesion for demanding applications.

  • Al adhesion up to ≥ 4.0 N/15mm
  • Withstands 121°C retort (C01)
  • Excellent water resistance
  • 2-layer replaces 3-layer structures
RetortLiquid PkgDairyPharma
ItemUnitES-C01ES-C02ES-C03
Al AdhesionN/15mm4.02.83.0
Pasteurization—✔✔✔
Retort ≤121°C—✔✘✘

ES-VM Plus Composite Structure

Our flagship blackout material is a multi-layer composite — metallized film bonded with non-woven fabric for optimal blackout, durability, and weather resistance.

ES-VM Plus composite material layer structure

Product Selection Guide

Feature ES-VM ★ ES-VM Plus ES-GF ES-H ES-C
BlackoutStandardTotal BlackoutStandardGoodStandard
Weather ResistanceStandard★ Superior (UV tested)StandardStandardGood
Al Adhesion1.51.5≥ 2.0–3.0≥ 1.5–2.5≥ 2.8–4.0
Barrier LevelStandardGoodGoodTop-tierGood
Retort————121°C
Certifications——FDA/EU/REACH——
Best ForGeneral useBlackout curtains & outdoorFood packagingLong shelf-lifeRetort packaging

Our Capabilities

From Base Film to Finished Product

One-stop metallized film processing — vacuum metallization, non-woven lamination, and rigorous quality control.

01

Vacuum Metallization

Precision aluminum deposition on PET base film with controlled optical density. Al thickness: 0.8Ω ≈ 650–700Å. Surface tension treated to ≥ 48 mN/m for optimal downstream adhesion.

PET Base → Surface Treatment → Vacuum Al Deposition → Weather Protection Layer (Option) → QC & Slitting
02

Non-woven Lamination

Composite lamination of metallized film with non-woven fabric, producing blackout curtain-grade composite semi-finished materials. The finished product combines the blackout reflective function of metallized film with the texture, strength, and structural support of non-woven fabric.

One-stop lamination process flow diagram
03

Quality Control

Every batch ships with a Certificate of Analysis (COA). Our QC covers physical, mechanical, thermal, optical, metallization, and barrier properties — tested to ASTM and GB standards.

Physical
Thickness, COF, Wetting Tension
Mechanical
Tensile Strength, Elongation
Thermal
Heat Shrinkage (150°C)
Optical
Gloss, Haze
Metallization
Al Thickness, Adhesion, Uniformity
Barrier
OTR, WVTR

Applications

Unlimited Possibilities with Metallized Film

From blackout fabrics to high-barrier packaging — our metallized films serve diverse industries worldwide.

Finished Product: Cellular Blind (Honeycomb Shade)

ES-VM Plus metallized film laminated with non-woven fabric becomes the core material inside cellular blinds — also known as honeycomb shades. The honeycomb structure traps air for superior insulation, while the metallized layer provides total blackout and heat reflection. This is the premium window treatment material used in hotels, hospitals, and high-end residential projects worldwide.

Total Blackout Energy Saving UV Weather Resistant Premium Grade

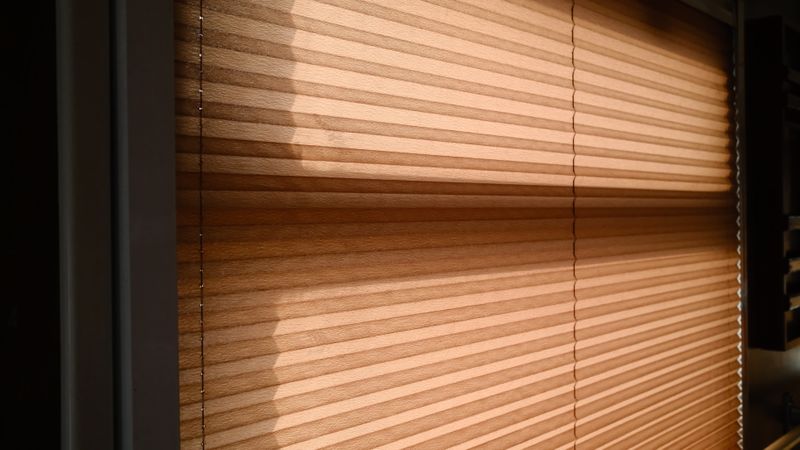

Honeycomb cellular blinds — blackout window treatment Cellular honeycomb blind cross-section showing ES-VM Plus metallized film composite

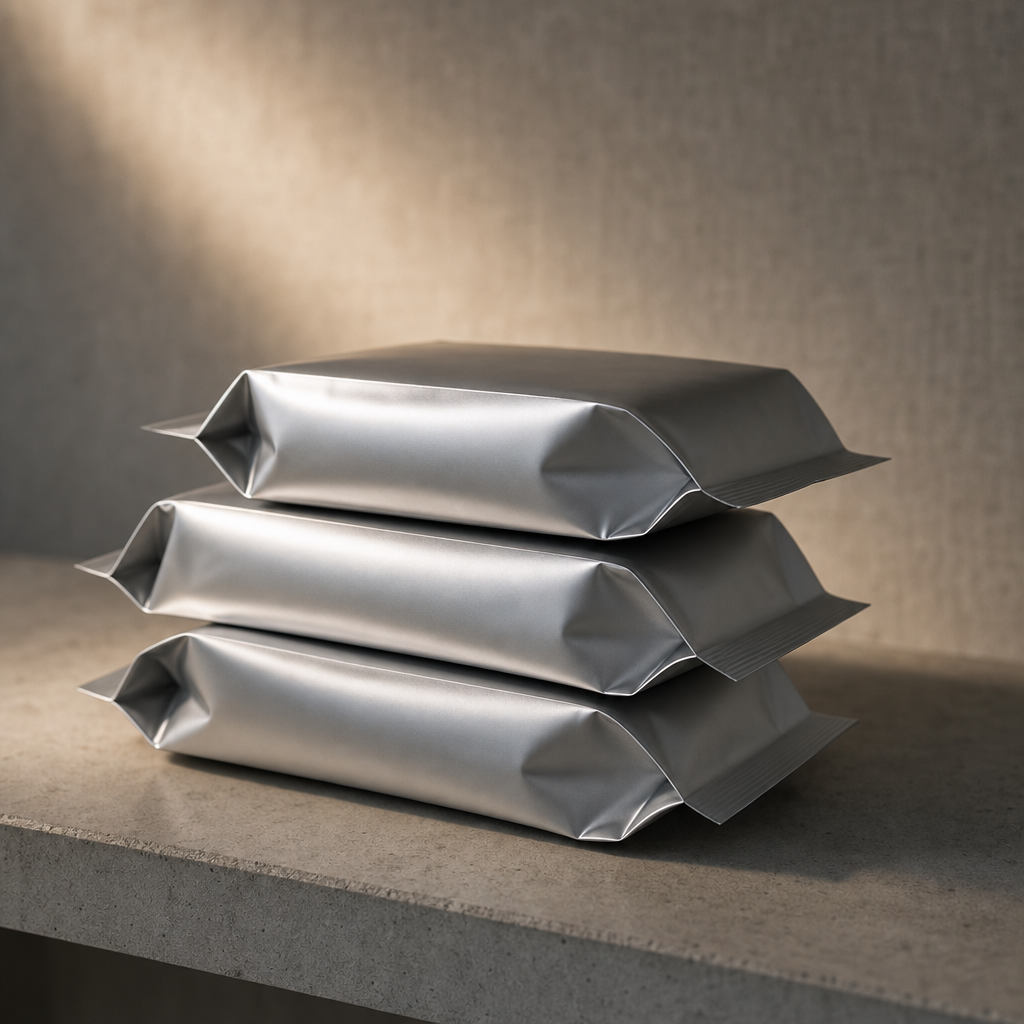

Metallized flexible packaging pouches for food industry

Food Flexible Packaging

High-barrier metallized film extends shelf life with excellent aroma retention — ideal for dried fruits, tea, coffee, snacks, and dairy products. Our ES-GF and ES-H series meet FDA / EU / REACH / RoHS requirements.

ES-GF / ES-H / ES-C
Window tint film using translucent metallized material

Window Tint & Heat Insulation Film

Translucent metallized PET film is used as the functional layer in automotive and architectural window tint films — reflecting infrared heat while maintaining visible light transmission for energy-saving comfort.

ES-VM / Custom Grade
★

Blackout Curtain Fabrics

ES-VM Plus laminated with non-woven fabric for total blackout curtains. Superior weather resistance ensures no aluminum peeling or fogging under prolonged sun exposure — ideal for hotels, hospitals, and premium residential projects.

Recommended: ES-VM Plus
⌂

Agricultural Greenhouse

Reflective metallized film for greenhouse covering — regulating light and temperature to boost crop growth efficiency.

ES-VM / ES-VM Plus
⚙

Industrial Blackout & Insulation

Industrial-grade blackout and thermal insulation materials for equipment covering and facility protection.

ES-VM / ES-C
♨

Retort Packaging

Chemical-coated metallized film withstands 121°C retort processing for ready-to-eat meals and pharmaceutical packaging.

ES-C01
⊡

Electronic Protection

Moisture-proof, anti-static, and light-blocking protection for sensitive electronic components and devices.

ES-H03

Quality Assurance

Trusted by Standards, Proven by Data

Testing Standards

Dual testing system: ASTM (American Society for Testing and Materials) and GB (Chinese National Standards). Products comply with FDA, EU, REACH, and RoHS requirements (ES-GF Series).

COA — Certificate of Analysis

Every shipment includes a comprehensive COA covering physical, mechanical, thermal, optical, and metallization properties with full traceability.

TDS — Technical Data Sheets

Complete product specifications available for all five series. Contact us for detailed TDS documents.

Request TDS →

About Expansteel

Focused on Metallized Film Processing

Expansteel Industry CO., LTD specializes in functional metallized film processing. Our core capabilities include vacuum metallized PET film processing and metallized film-to-nonwoven lamination, providing global customers with blackout, barrier, and reflective composite material solutions.

We compete on consistent quality, reliable delivery, and specification customization, striving to be the most dependable partner in the global metallized film supply chain.

◎

Consistent Quality

Every batch tested and certified

⟐

Reliable Delivery

On-time shipment you can count on

⬡

Custom Specifications

Thickness, width, length — fully flexible
